FL-0001
FLEC Cell
The original stainless-steel emission cell for controlled VOC sampling in laboratories, on site and in production quality control.
View product
Core systems

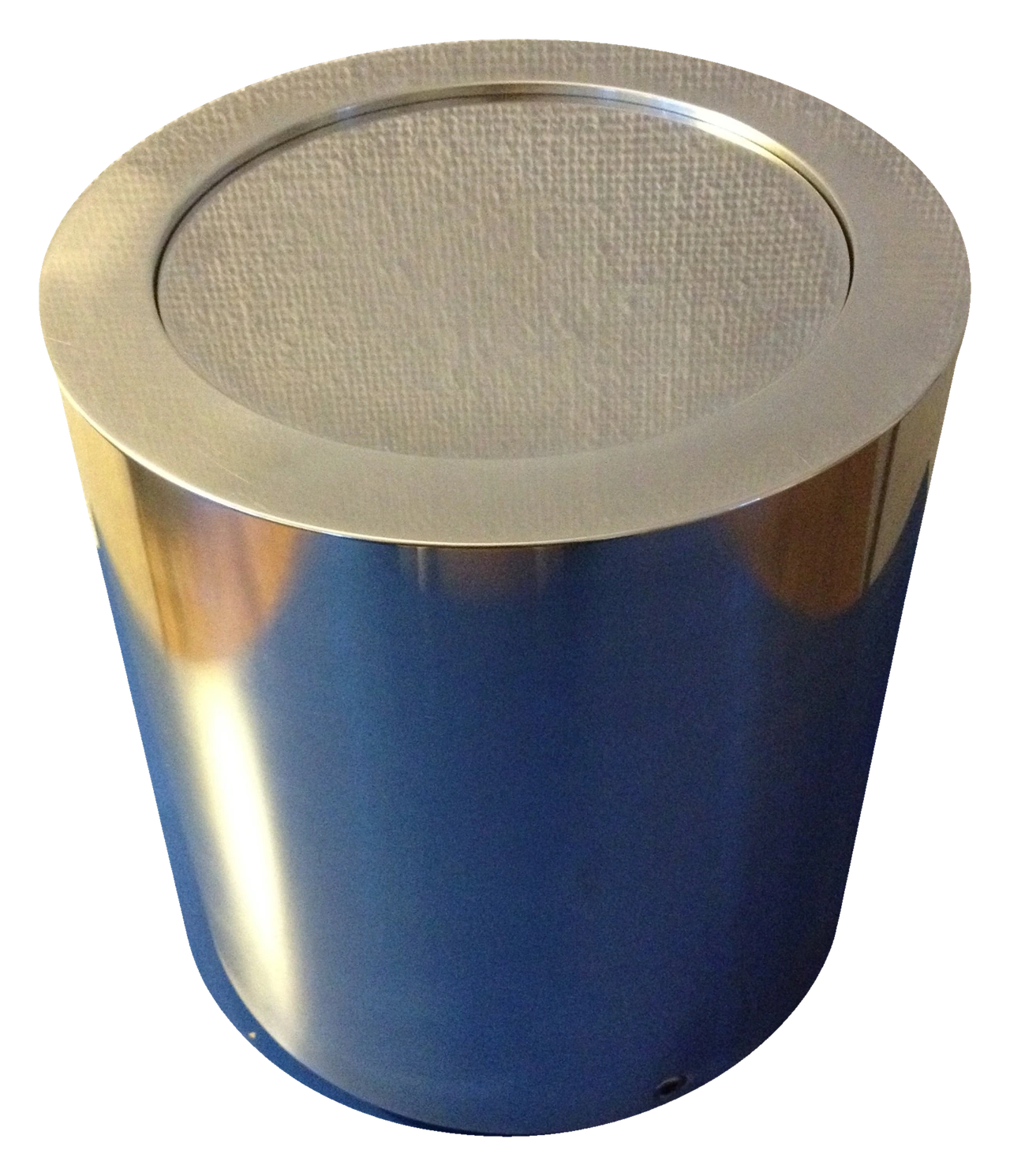

FL-2002
FLEC Sub-Unit, 152 mm ID
The FL-2002 FLEC Sub-Unit supports emission sampling from non-planar, porous, liquid or sticky materials. Its 152 mm internal diameter accommodates a standard Petri dish. The internal height can be adjusted from 0 to 100 mm for dynamic or static headspace measurements, and the removable legs allow use on a heating plate or in an oven when required by the test procedure.
Technical guidance included
Worldwide delivery available
Manufactured by CHEMATEC
Technical overview
| Product code | FL-2002 |
|---|---|
| Weight | 13.5 kg |
| Dimensions | Height: 220 mm; outside diameter (OD): 200 mm |
| Chamber diameter | ID = 152 mm |
| Chamber height | 0–100 mm |
| Sample container | Accommodates a standard Petri dish |
| Samples | Non-planar, porous, liquid or sticky materials |
| Mounting | Removable legs; heating plate or oven use when required by the procedure |
Select airflow and sampling conditions according to the applicable method and your material. Contact CHEMATEC for configuration guidance.
See the FLEC Sub-Unit in use
Poul Erik Sørensen, Founder of CHEMATEC, demonstrates sample loading, chamber-height adjustment and FLEC Cell placement. 58 sec · English narration and on-screen instructions · No background music.
