FL-0001

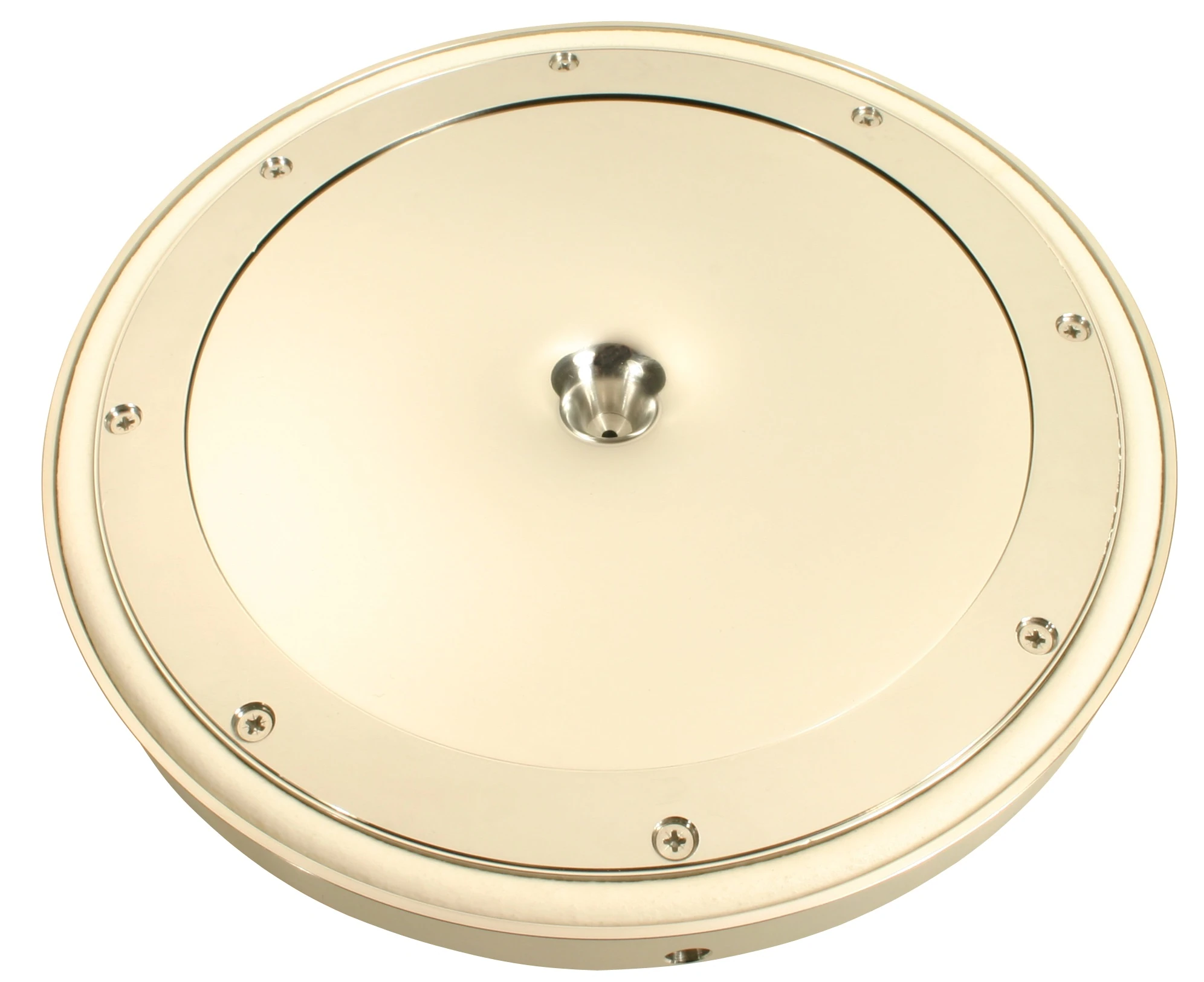

FLEC Cell
The FLEC Cell (Field and Laboratory Emission Cell) is manufactured from acid-resistant stainless steel with polished internal surfaces. Its compact geometry minimises internal surface area and helps reduce sink effects compared with conventional chambers. The outlet design allows air to be collected on one or two sampling tubes while maintaining a small, constant overpressure in the cell. FLEC can be used for laboratory measurements, non-destructive testing on installed surfaces and production-line quality control, including wood flooring, paints and coatings.
Technical guidance included
Worldwide delivery available
Manufactured by CHEMATEC
FL-0001 specifications
| Product code | FL-0001 |
|---|---|
| Weight | 4 kg |
| Dimensions | Cylindrical; outside diameter 200 mm. Height excluding fittings: 20 mm. Height including fittings: 85 mm |
| Test material surface area | 177 cm² (circular) |
| Test chamber volume | 35 cm³ |
| Air exchange rate | 100–1000 per hour |
| Air velocity over test material | 0.35–1.75 cm/s |
| Test chamber surface area | 180 cm² |
| Air inlet flow | 100–500 ml/min |
| Air outlet flow to sample tubes | 80–400 ml/min |
| Air outlet flow to vent | 20–100 ml/min |
| Material in contact with the sample stream | Certified solid, acid-resisting, polished stainless steel (all internal contact surfaces are mirror-polished to minimize sink effects). |
| Connection to air supply | Two 1/4″ PFA tubes, Swagelok Teflon cone |
| Connection for sample tubes | Two 1/4″ sample tubes can be connected for simultaneous sampling |
System requirements
| Air supply | The FLEC Cell must be supplied with well-controlled, clean and humidified air, e.g. FLEC Air Control FL-1000 |
|---|---|
| Suction pumps | Precision suction pumps for sample tubes can be used |
Select airflow and sampling conditions according to the applicable method and your material. Contact CHEMATEC for configuration guidance.
How the measurement works
From surface emissions to laboratory results
The material closes the underside of the cell and defines the exposed surface. Controlled air carries released compounds to suitable sampling media. Analysis of the collected sample establishes which compounds were present and their concentrations.
- Prepare the specimenUse the appropriate holder and document the exposed area, material age and conditioning.
- Verify the flowsCheck the inlet flow and each sampling flow. Keep an excess-air path through the vent.
- Choose the analytical routeAgree sampling media, duration and analysis with the laboratory for the compounds of interest.
For VOCs, ISO 16000-6 describes sorbent-tube sampling followed by thermal desorption and gas chromatography. ISO 16000-3:2026 covers active air sampling and analysis for formaldehyde and other carbonyl compounds. For acrolein, Annex A uses sorbent-tube sampling with thermal desorption and GC-MS because the DNPH method is not considered reliable for quantitative results. ISO 16000-3 addresses sampling and analysis; the emission-cell test method is covered by ISO 16000-10. Compare results using a consistent preparation, climate and sampling procedure.
Download the CHEMATEC FLEC technical guide (PDF)Revision 2.4 · 11 September 2026 · 21 pages.
See the FLEC Cell in use
Clean handling, air connections, sampling tubes and placement on the test surface. 64 sec · English narration and on-screen instructions · No background music.
